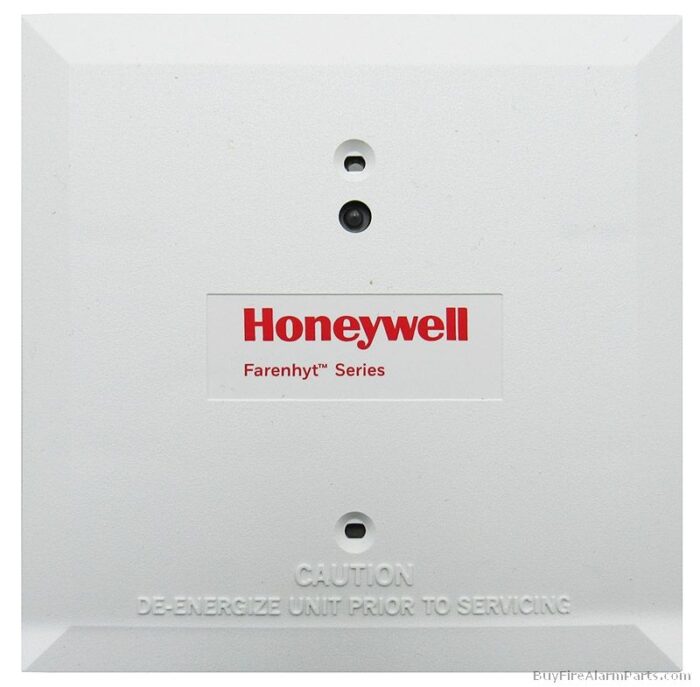

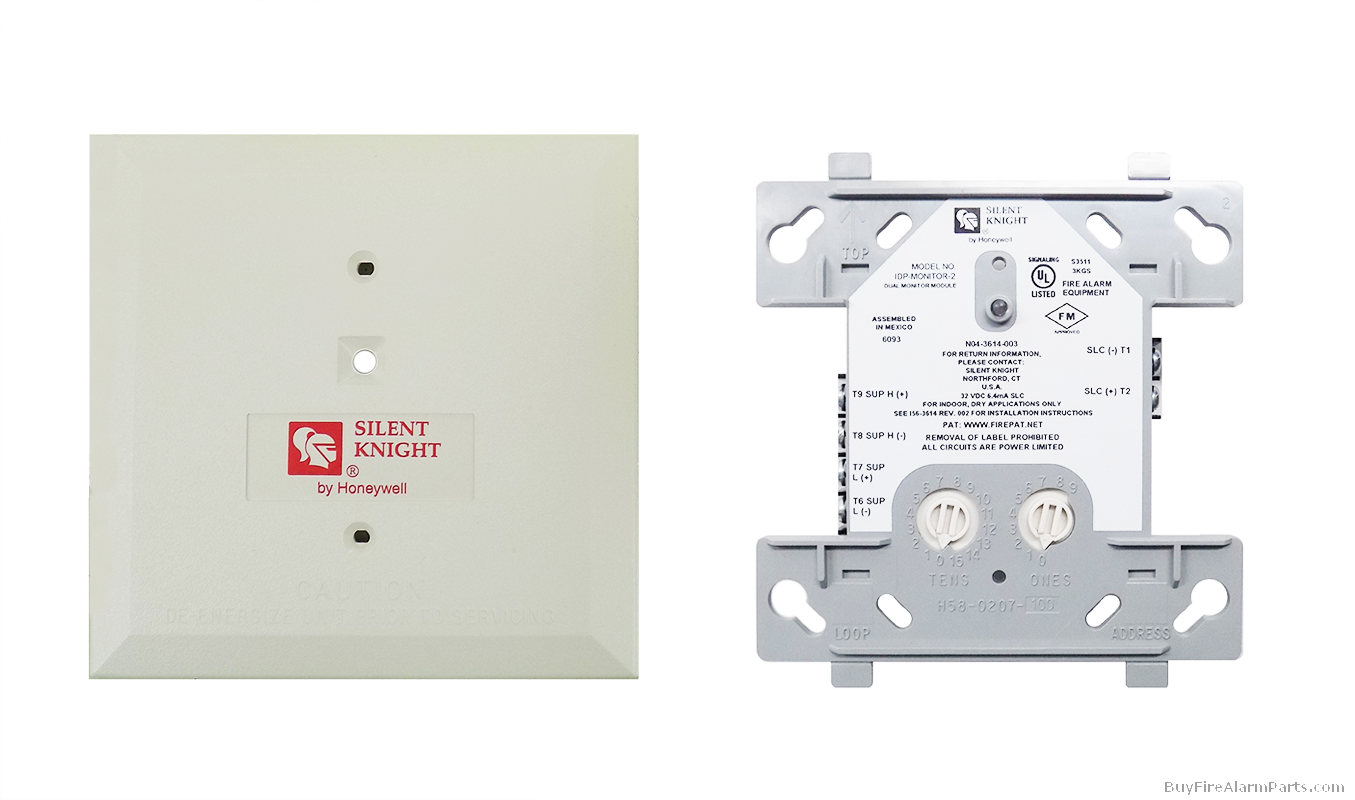

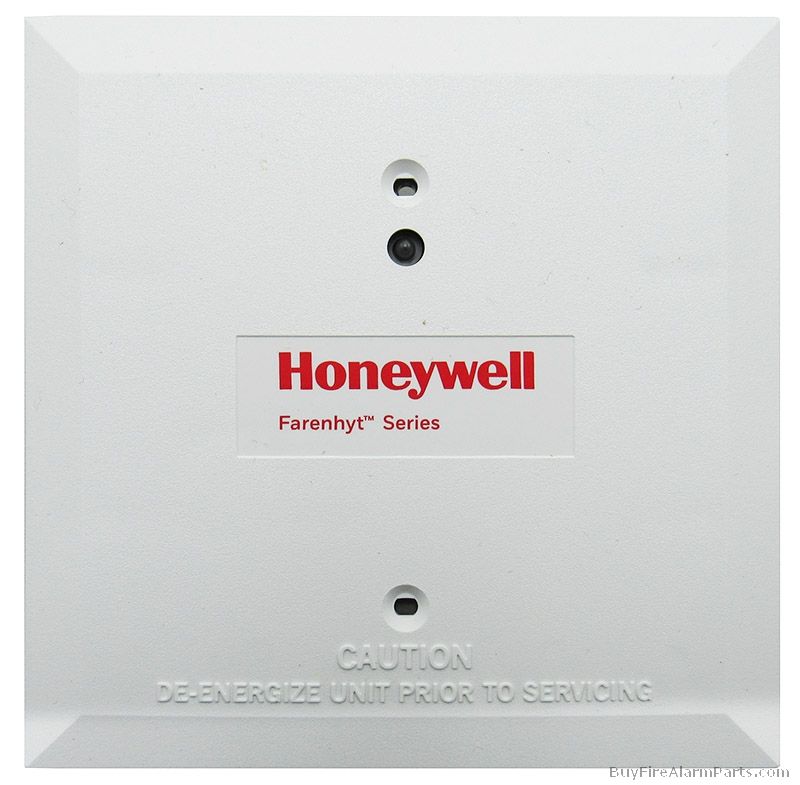

Honeywell Silent Knight Addressable IDP-Monitor 2

Addressable Dual Monitor Module

The IDP-MONITOR-2 is an addressable monitor module with two initiating circuits for use with Honeywell Farenhyt Series fire alarm control panels (FACPs). The IDP-MONITOR-2 acts as an interface to contact devices, such as waterflow switches and pull stations. The IDP-MONITOR-2 supports Class B supervised wiring to the load device. Conventional 4-wire smoke detectors can be monitored for alarm and trouble conditions. Because the IDP-MONITOR-2 is capable of monitoring two separate Class B circuits, it is ideal for waterflow tamper switch and flow switch monitoring.

Installation

The IDP-MONITOR-2 mounts directly into a 4” square electrical box. The box must have a minimum depth of 2-1/8”. A surface mount electrical box (System Sensor® PN SMB500) is available from Honeywell.

COMPATIBILITY

The IDP-MONITOR-2 is compatible with the following Honeywell Farenhyt Series FACPs:

IDP-MONITOR-2

• IFP-2100/IFP-2100ECS/RFP-2100 • IFP-2000/IFP-2000ECS/RPS-2000 • IFP-1000/IFP-1000ECS
• IFP-300/IFP-300ECS

• IFP-100/IFP-100ECS
• IFP-75
• IFP-50

FEATURES & BENEFITS

• Monitor two circuits, with unique addresses, simultaneously
• Support for Class B wiring
• Fully supervised

• Panel controlled status LED that flashes green in normal state and is solid red in alarm

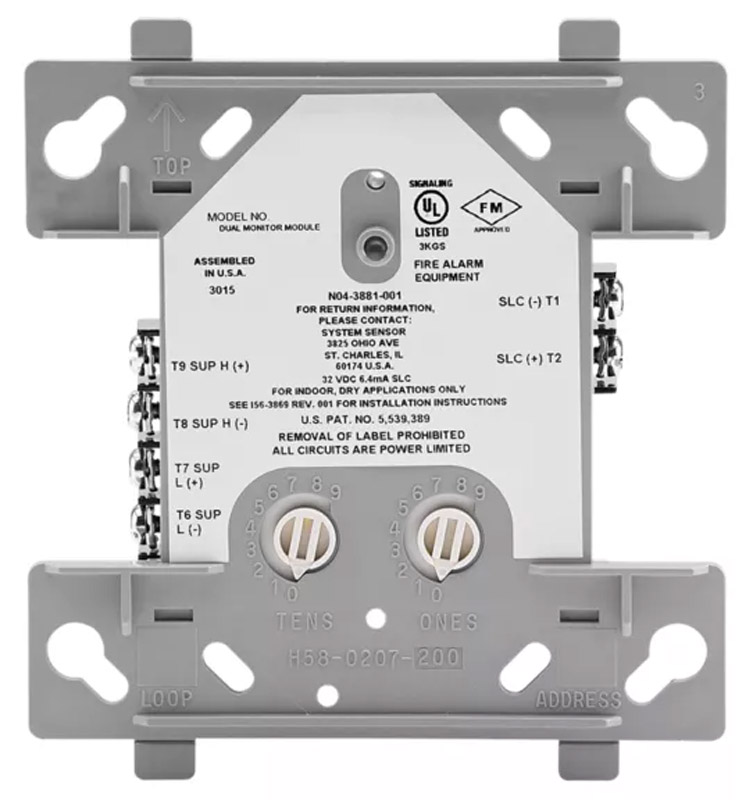

• Rotary address switches for fast installation
