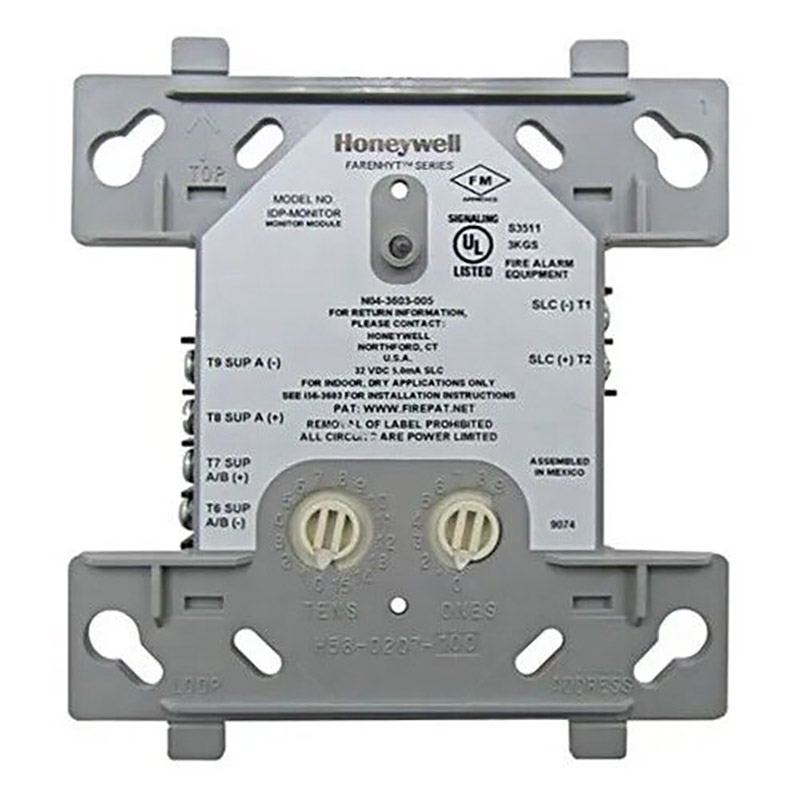

The IDP-Monitor is an addressable monitor module for use with Silent Knight IFP-series fire alarm control panels (FACPs). The
IDP-Monitor acts as an interface to contact devices, such as waterflow switches and pull stations. The IDP-Monitor supports Class A supervised or Class B supervised wiring to the load device. Conventional 4-wire smoke detectors can be monitored for alarm and trouble conditions.
The IDP-MONITOR is an addressable monitor module for use with the Honeywell Farenhyt Series fire alarm control panels (FACPs). The IDP- MONITOR acts as an interface to contact devices, such as waterflow switches and pull stations.
The IDP-MONITOR supports Class A supervised or Class B supervised wiring to the load device. Conventional 4-wire smoke detectors can be monitored for alarm and trouble conditions.
INSTALLATION
The IDP-MONITOR mounts directly into a 4” square electrical box. The box must have a minimum depth of 2-1/8”. A surface mount electrical box (System Sensor® PN SMB500) is available from Honeywell.
COMPATIBILITY
The IDP-MONITOR is compatible with the following Honeywell Farenhyt Series FACPs:
• IFP-2100/IFP-2100ECS/RFP-2100 • IFP-2000/IFP-2000ECS/RPS-2000 • IFP-1000/IFP-1000ECS
• IFP-300/IFP-300ECS
• IFP-100/IFP-100ECS • IFP-75
• IFP-50
FEATURES & BENEFITS
• Panel controlled status LED that flashes green in normal state and is solid red in alarm
• Standard 4 inch electrical box mounting
• SEMS screws for easy wiring
• UL Listed
• CSFM Listed
• MEA Listed 427-91-E Vol.X
