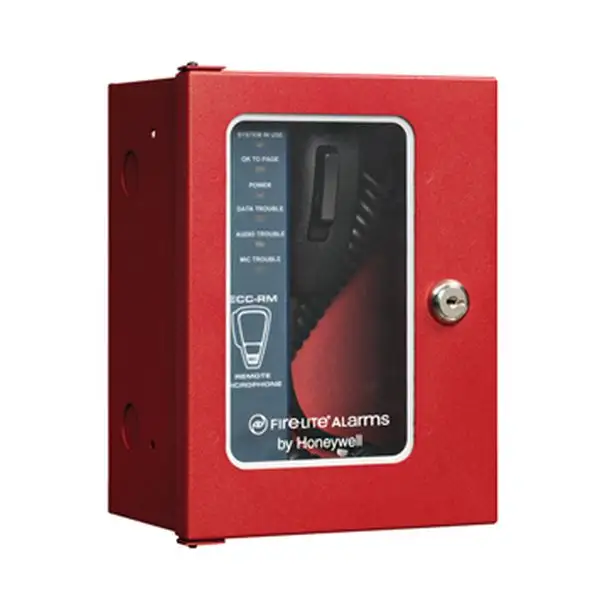

Honeywell Fire-Lite ECC-RM Remote Microphone
Description
Firelite’s ECC-RM is an optional Remote Microphone that is compatible with the ECC-50/100(E) Emergency Command Center for fire protection applications. It is part of a family of external remote consoles that allows for extending the opera- tor interface to remote locations within a building. It is housed in a cabinet with a keyed or an optional thumb lock to limit access to qualified personnel.
The ECC-RM remote microphone allows for ALL CALL paging to be broadcast over the speaker circuits when depressing the microphone’s push-to talk switch. The RM requires an external data bus connection, an external audio riser connection, and an external operator interface power connection (24 Volts DC) from the ECC-50/100 main console.
TYPICAL APPLICATIONS
- Schools
- Theaters
- Auditoriums
- Dormitories
- Healthcare Facilities
- Military facilities
- Factories
- Places of Worship
- Restaurants
- Office Buildings
FEATURES
- External remote console that provides ALL CALL paging broadcasts over the speaker zones of the ECC-50/100(E) primary operating console.
- Modular design for maximum system flexibility and easy expansion.
- Supports both Class A (Style Z) and Class B (Style Y) wiring.
- A maximum of eight ECC-RMs can be connected to an ECC-50/100(E) primary operating console.
- Built-in microphone with push-to-talk feature that can be used for ALL CALL paging.
- Sturdy cabinet design with a keyed lock to prevent unautho- rized access. Optional thumb lock is available.
- Simple and straightforward user interface.
-
