The ANN-100 annunciator is a compact, backlit, 80-character LCD fire annunciator that mimics the Fire Alarm Control Panel (FACP) display. It provides system status indicators for AC Power, Alarm, Trouble, Supervisory, and Alarm Silenced conditions.

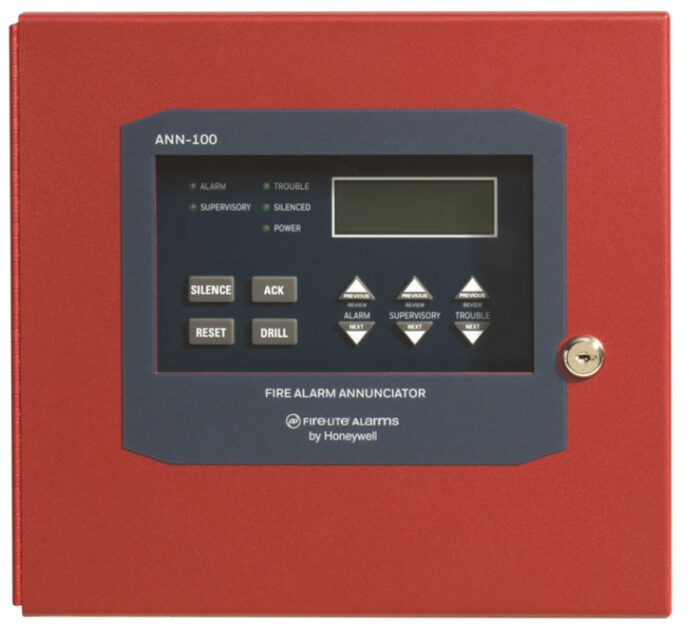

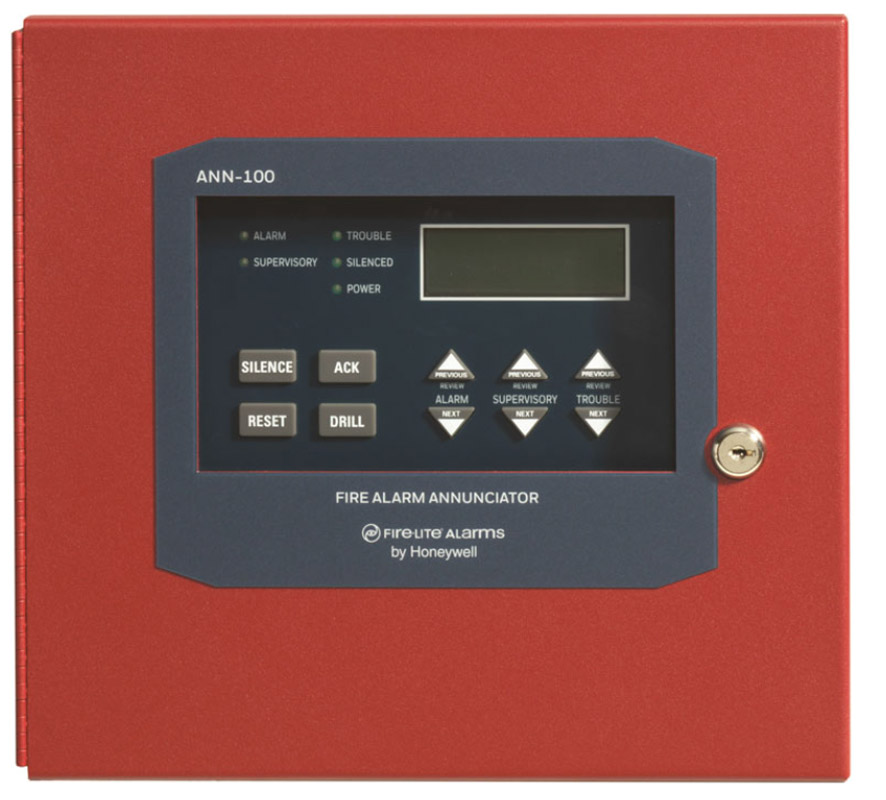

Honeywell Fire-Lite ANN-100 Fire Alarm Annunciator
Description
The ANN-100 annunciator is a backlit, 80-character LCD fire annun- ciator that mimics the Fire Alarm Control Panel (FACP) display. It provides system status indicators for AC Power, Alarm, Trouble, Supervisory, and Alarm Silenced conditions.
The ANN-100 and the FACP communicate over a two-wire serial interface employing the ANN-BUS communication format. Con- nected devices are powered, via two additional wires, by either the host FACP or a remote UL-listed, filtered power supply.
The ANN-100 displays English-language text of system point infor- mation including device type, zone, independent point alarm, trouble or supervisory status, as well as any custom alpha labels pro- grammed into the control panel. It includes control switches for remote control of critical system functions. (A keyswitch prevents unauthorized operation of the control switches.)
Up to eight ANN-100s may be connected to each ANN-BUS of a FACP. No programming is required, which saves time during system commissioning.
Features
- Listed to UL Standard 864, 9th Edition
- Backlit 80-character LCD display (20 characters x 4 lines)
- Mimics all display information from the host panel
- Control switches for Signal Silence, System Acknowledge, Reset, and Drill
- Control switches can be independently enabled or disabled at the FACP
- Keyswitch enables/disables control switches and mechanically locks annunciator enclosure
- Keyswitch can be enabled or disabled at the FACP
- Enclosure supervised for tamper
- System status LEDs for AC Power, Alarm, Trouble, Supervisory, and Alarm Silence
- Local sounder can be enabled or disabled at the FACP
- ANN-100 connects to the ANN-BUS terminal on the FACP and requires minimal panel programming
- Displays device type identifiers, individual point alarm, trouble, supervisory, zone, and custom alpha labels
- Time-and date display field
- Surface-mount or flush-mount installation options
- Optional trim ring for a more finished look
- Can be remotely located up to 6,000 feet (1,800 m) from the panel
- Backlight turns off during AC loss to conserve battery power but will turn back on if an alarm condition occurs
- May be powered by 24 VDC from the host FACP or by remote power supply (requires 24 VDC)
- Up to eight ANN-100s can be connected on the ANN-BUS
